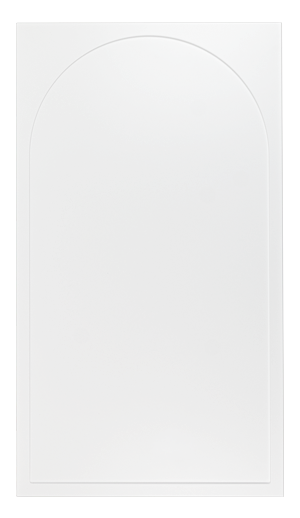

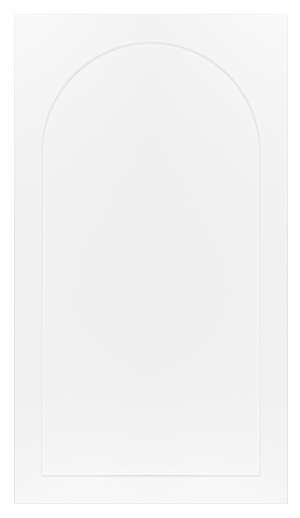

Maestro

Specifications

Material thickness 19 mm

Edge profile R2

The width of the lower part of the arch is 20 mm

Min. door height with arch 350 mm

Max door height 1250 mm

Min. width 295 mm

Max widht 597 mm

It is possible to combine Maestro modell with Swing 20 and Sointu models.

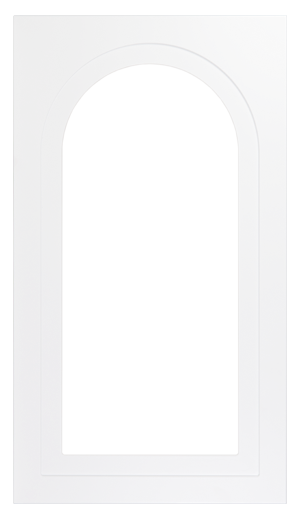

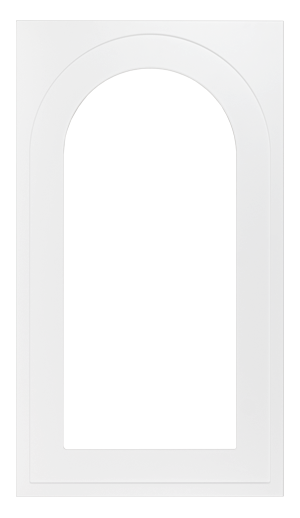

Technical information regarding glass openings

 Width of frame 70 mm viewed from ahead, corner radius R4 viewed from ahead

Width of frame 60 mm from behind, corner radius R17 from behind

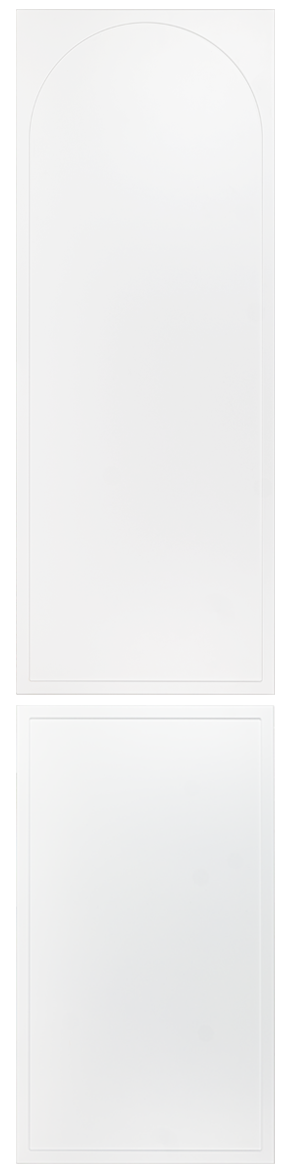

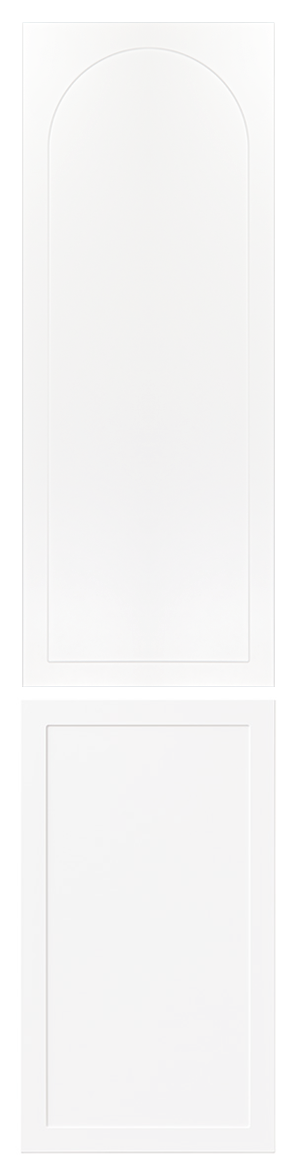

Closet doors

Closet doors and open framed doors:

Produced in two pieces, upper door Maestro, lower door Swing 20 mm

1920 mm= 1214 mm + 703 mm

1750 mm= 1044 mm + 703 mm

Max height 1250 mm
